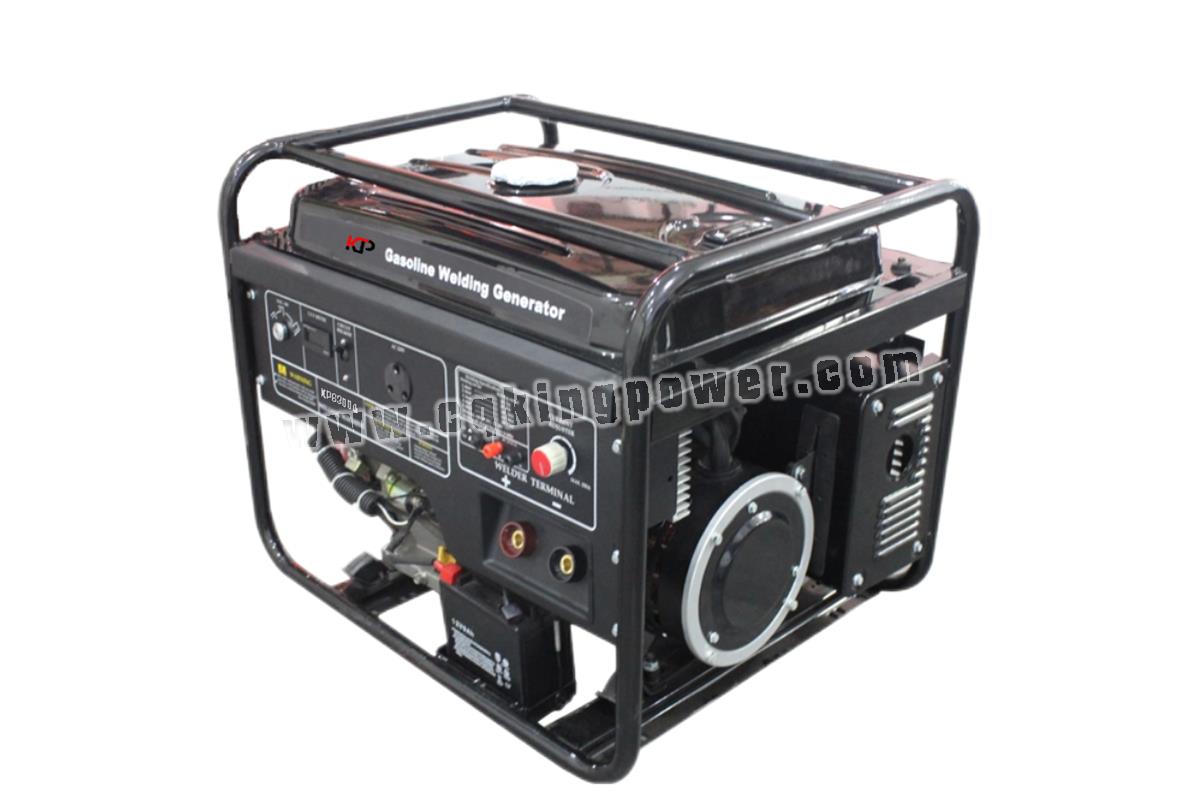

KP300A
| Technical parameters 技术参数 |
| Model 型号 | KP300A | |
| Generator 发电机 | Rated Voltage(v) 额定电压 | 220、230、240 |
| Rated Frequency(Hz) 额定频率 | 50/60 | |
| Rated Output Power(kw) 额定功率 | 6 | |
| Max Output Power(kw) 最大功率 | 8.8 | |
|
Welding 电焊 |
Rated Frequency(Hz) 额定频率 | 50 |
| DC Rated Output Voltage(v) 额定电压 | 22-28 | |
| DC Welding Voltage(v) 焊接电压 | 22-28 | |
| Loadng Continuous rate(%) 负载持续率 | 60 | |
| Current Adjusting Range(A) 电流调节范围 | 70-300 | |
| Diameter of welding rod(mm) 焊条直径 | 2.0-5.0 | |
| Insulation Grade 绝缘等级 | F | |
| Protection Grade 防护等级 | IP23 | |
| Engine 发动机 | Model 型号 | KP190FE |
| Type 发动机类型 | 4-stroke/aircooling/single cylinder/OHV 四冲程/单缸/强制风冷/OHV | |
| Displacement(cc) 排量 | 420 | |
| Ignition Mode点火方式 | Transistorized Magne to 晶体管无触点点火 | |
| Starting Mode 启动方式 | Recoil Start 手启动 | |
| Max Torque(N.MZrpm) 最大扭矩 | 26.5/2500 | |
| Fuel Tank Capacity(L/Gal) 油箱容量 | 25 | |
| Fuel Consumption (L/Hour)/Operating Hours(h) 燃油消耗率/连续运行时间 | 0.51/2.8 | |
| Oil Capacity(L/Gal) 机油容量 | 1.1 | |
| Noice Level(7m)(dB) 噪音 | 82 | |
| Package 包装 | Product Dimensions(mm) 产品尺寸 | 680 x 510 x 535 |
| Package Dimensions(mm) 包装尺寸 | 700 x 530 x 560 | |
| Net Weight/Gross Weight(kgs) 净重/毛重 | 90/95 | |
| 20FT Quantity 20尺装箱数量 | 128 | |
| 40FT Quantity 40尺装箱数量 | 272 | |
| 40HQ Quantity 40尺高柜装箱数量 | 272 | |
